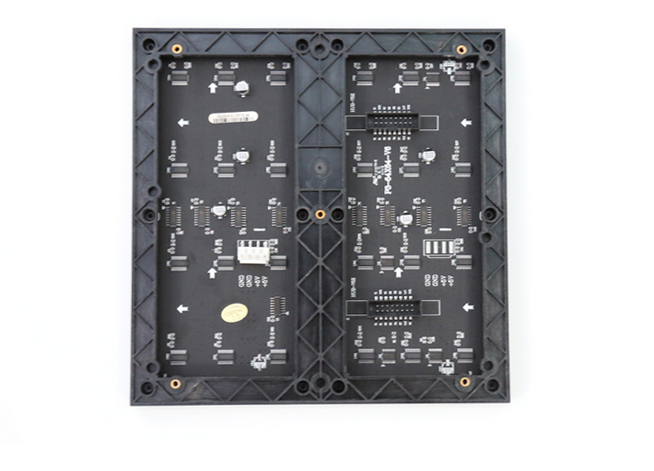

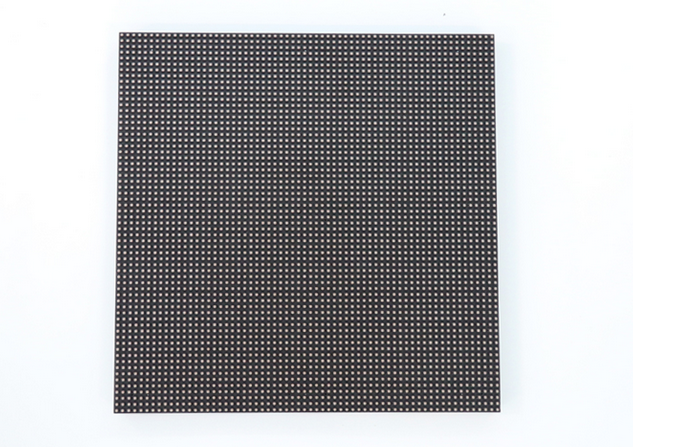

High energy-saving and resolution Indoor Full Color LED Display P3 led

board

1. High quality LED chip and high anti-static electricity capacity.

2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.

3. The integration of lamp and driving IC, together with with the multi-circuit structure,achieves evenly-distributed current, low power consumption and fast heat dissipation.

4. Ultra-high brightness, low attenuation, high reliability and weather ability.

5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.

6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.

Application scopes of Indoor LED video wall rental P3 LED display for event rental: Widely applied to traffic information distribution of station, quay and airport, conference, shopping mall, brand presentation, TVstation, stage show, concert and so on.

Pixel	Dot Pitch	3mm
	Pixel Configure	1R1G1B
	Pixel/SQM	111111Pixel/m²
Led lamp	LED TYPE	SMD 2121
	Chip Brand	EPISTAR
	Brightness	>=2000cd/m²
Module	Module Resolution	64dots(W)*32 dots(H)
	Drive Mode	Constant drive (MBI5124/5020)
	Scanning Method	1/16 scan
	Module Dimension	192mm(Width)x96mm(Height)
	Port type	HUB75
	LED & Drive Composition	Light-Drive Combo
	Refresh Rate	>1000HZ
Cabinet	Cabinet Thickness	85mm
	Cabinet Construction	Normal Standard Cabinet
	Cabinet Assembly	Connecting Sheet
	Cabinet Color(Front/Back)	Black
	Aviation Plug	wp20
	Maintenance Mode	Back Maintenance
	Cabinet Material	Spcc1.
	Cabinet Dimension	576X576 mm
	Module QTY	5(Width)X5(Height)
	Power Supply	China Power Supply
LED screen	Viewing Angle	Horizontal : 120 ° Vertical: 120 °
	Brightness	>1000cd/m²
	Best Viewing Distance	4~20m
	LED Life	100,000Hours
	Maximum Power	1200w/m²
	Average Power	310W/S
	Input Voltage	AC220V±10%
	Operation Environment	Temperature: -20°C~60°C; Humidity: 10%~95%
	Protection Grade	IP 30
	LED Screen Weight	30kg/m2

Pre-sale service:

1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.

After-sale service:
1. Complaint responds period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 24 months.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

Shenzhen Haojingyuan Optoelectronic Co., Ltd is a high-tech LED enterprise engaged in researching, manufacturing, selling and project service of LED Display, led rental stage display, led display screen, LED display Module, street LED display Board, the high way led display and so on. On the basis of professional talents and abundant funds, several agents have been set up in many cities, providing fast and thorough service.

Our boss has more than 20 years experience in the led display market, he knows well about all production problem and installation problem and setup problem.

Our company owns a group of high-quality professional and technical personnel and advanced modern sophisticated production equipment. We implement strict quality management, making every LED display module, LED display cabinet, LED display screen into competitive products. Our products have passed European CE& American FCC Certificates. Several items reach the international advanced level in similar products. Rely on raw materials suppliers and distributors who are from domestic and overseas as well as ourselves are build strategic alliances advantages, fully realized resource sharing, share out the work and cooperate, complement each other's strengths and efficient cooperation. Nowadays, we are specialized in LED Display, which widely in industries of advertisement, pub, airport, station, harbor, gym, banks, school, factory, post office, department store, hospital, revenue office, customs, supervising center, etc. All the products are exported to America, Russia, Great Britain, France, Australia, Greece, Italy, Japan, South Korea, Kazakhstan, Spain, Brazil, Peru, Chile, DO, etc.

Depending on the abundant fund, a professional strength, and stable quality, we support fast & thorough service and the most competitive products to each of our clients. Our company has clear high-quality positioning, trying our best to improve technology, making neck and neck of international advanced management to provide service for clients all over the world.
