Outdoor large commerical advertising P6 Full Color LED Display

    Buy cheap Outdoor large commerical advertising P6 Full Color LED Display from wholesalers

    Buy cheap Outdoor large commerical advertising P6 Full Color LED Display from wholesalers
    • Buy cheap Outdoor large commerical advertising P6 Full Color LED Display from wholesalers
    • Buy cheap Outdoor large commerical advertising P6 Full Color LED Display from wholesalers

    Outdoor large commerical advertising P6 Full Color LED Display

    Ask Lasest Price
    Brand Name : HJY
    Model Number : P6
    Certification : FCC CE
    Price : Negotiate
    Payment Terms : T/T, Western Union
    Supply Ability : 3000sqm per month
    Delivery Time : 15-20days after receiving deposit
    • Product Details
    • Company Profile

    Outdoor large commerical advertising P6 Full Color LED Display

    Outdoor large commerical advertising P6 Full Color LED Display


    1Pitch size6mm
    2Module size192mm*192mm
    3Module pixel(dots)32*32 dot
    4Pixel configuration1Red,1Green,1Blue SMD 3-in-1
    5Color scale65536degree/1.07 billion colors
    6Pixel density27777pixels/square meter
    7View angle(H/V)60/120degree
    8Brightness≥5000cd/sqm
    9Brightness adjustment100level automatic or manual
    10View distance6--80m
    11Power consumption100-1200W/sqm
    12Net weight45kg/square meter
    13Operating temperature—45°C~+60°C
    14perating humidity10%—95%RH
    15Life time≥100,000hours
    16Out of control dot≤3/10,000
    17Whole Display Flatness≤1mm Juncture
    18Exchange frame speed>150frames per second
    19Refresh frame frequency600Hz
    20Control distanceCat. 5: 120m (without repeater), single mode fiber:20km,multi mode fiber: 500m
    21Power110V/220V±15% 50Hz
    22Operating systemWin7 Win8 Win10
    23Drive mode1/8 scan
    24Display modeVGA640X480—VGA1600X1024
    25Protections for outdoor displayIP65 for front, IP54 for rear
    26Maintenance wayrear access, hanging installation
    27Accepting signalPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

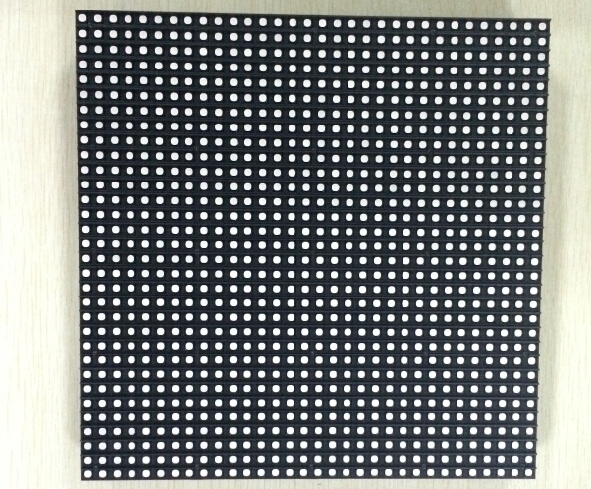

    LED display module photo


    led display photo


    Maintenance
    Comcreating provides 1% spare parts freely, including LED module, power supply, fan, receiving card, LED lamps and other related parts. You can replace the broken one with the spare parts when problem happens, which will take about 5 minutes, and then send the broken ones back to our factory for fixing freely before you don't have enough spare parts for next maintenance. Additional charges will be required if you want more spare parts. We offer lifetime maintenance and charge only for the raw materials after the guarantee period.


    Training
    We offer training for free. Customer can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training. We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too.


    Installation

    User's manual, instruction video, professional CAD installation drawing, and other needed engineering drawings will be provided. We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it's not cost-effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site.

    Engineering training or installation assistance support at customer’s place is available, but a round-trip ticket, local accommodation of technician, staff labor cost(USD100/day if exceeding one week), cost of visa, and other expenses during the whole trip should be borne by the customer.
