    P8 outdoor full color led display advertising led display billboard

    Ask Lasest Price
    Brand Name : HJY
    Model Number : P8
    Certification : CE FCC
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000sqm/month
    Delivery Time : 15-20 days after receiving deposit
    • Product Details
    • Company Profile

    P8 outdoor full color led display advertising led display billboard

    P8 outdoor full color led display advertising led display billboard


    ItemTechnical Specification
    PixelPixel pitch: 8mm
    Pixel configuration: 1R1G1B 3535
    Brightness: Red: 600mcd Green: 2300mcd Blue: 500mcd
    Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm

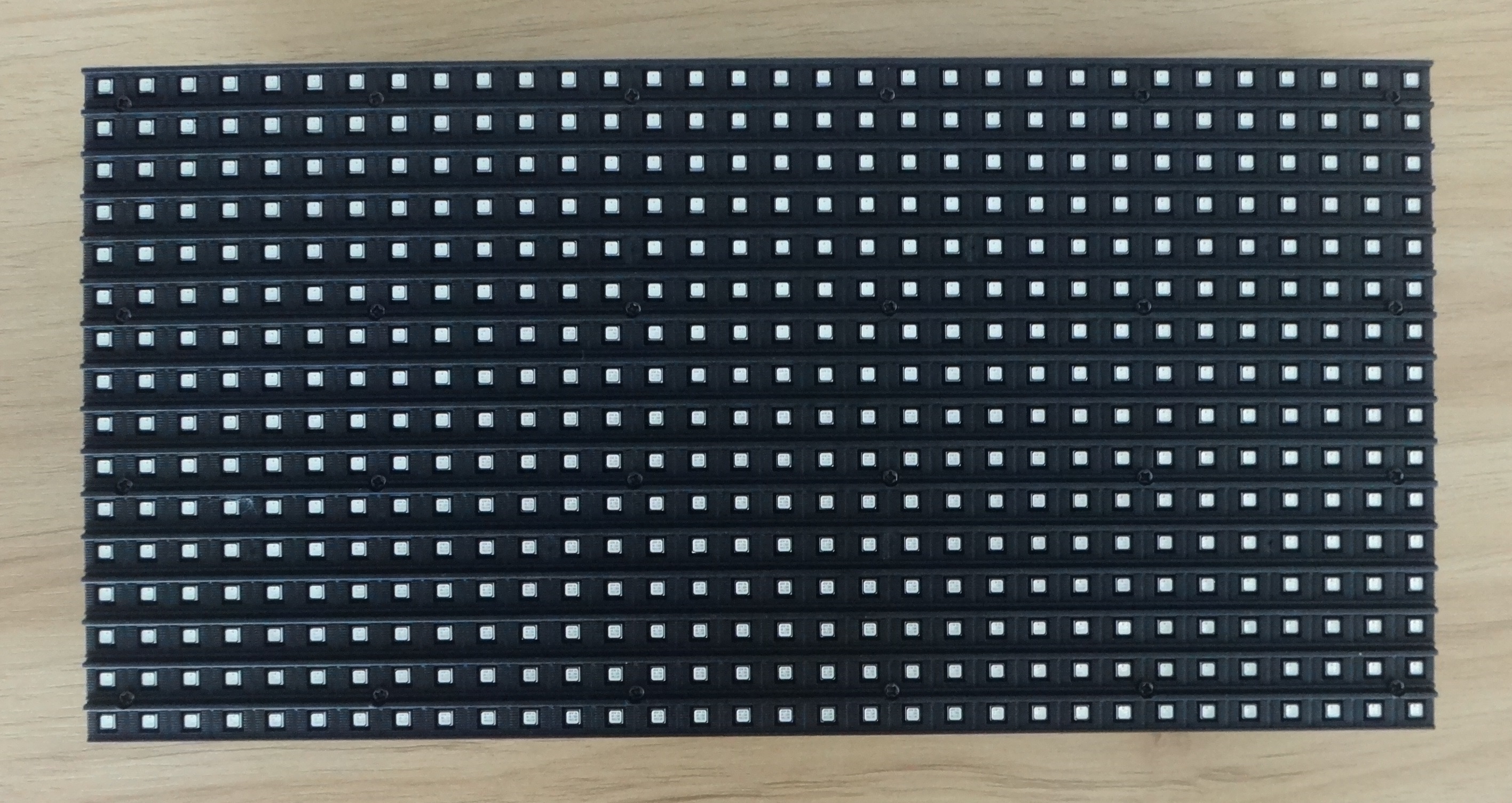

    ModuleModule size: 256mmx128mm
    Module resolution:32x16 pixels
    CabinetCabinet resolution: 1024*1024 pixels
    Cabinet material: Steel
    Gross weight: 45kg
    Module quantity: 32pcs= 8(w) x 4(h)
    Cabinet size: 1024mm×1024mm×150mm
    Power consumption : Max.:800W/m² Average: 350W/m²
    Screen parameterDrive method: 1/4 scanning
    Brightness: 6000cd/m²
    IC driver: MBI 5124
    Density: 15625pixel/m²
    Whole display flatness: ≤ 1mm juncture
    Best view distance: ≥ 16m
    Viewing angle: Horizontal: 120° Vertical: 60°
    Humidity(RH): ≤ 90~95%
    Working temperature: from -20°C~ +50°C
    Working voltage: AC220V/110V±20%
    Refresh frequency: ≥ 300Hz(Linsn)
    Frame rate: ≥ 540Hz
    Protection grade: IP65
    MTBF: More than 10000hrs
    Life time: 100,000 hrs
    Control systemControl system: Linsn/novastar
    Signal interface: DVI
    Communication distance: The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
    Systems operating platforms :XP,WINDOWS(WIN95,WIN98,WIN2000)
    Input Signal:RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
    Image adjustment:contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
    Life span:100,000 hours
    Out-of Control rate:0.0001
    Control system:Synchronized
    Operating Environment Temperature :-20°C—65°C Optional

    1. Wide application field & short ROI time:
    commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction
    2. High Contrast ratio: 4000:1
    Which is a very high level to ensure a vivid image of our LED display screen system.
    3. First-class LED chip:
    Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
    4. Clear vivid image quality:
    Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment
    5. Long-term Brightness:
    Automatic or manual adjustment of the brightness of the display.
    6. Easy Installation & Using:
    easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
    7. Convenient Servicing:

    Front and rear cabinet access makes the maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion
