Super bright Energy saving Waterproof Outdoor Fixed LED Display P6

colorful sign

Feature

1. High quality LED chip and high anti-static electricity capacity.

2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.

3. The integration of lamp and driving IC, together with with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.

4. Ultra-high brightness, low attenuation, high reliability and weather ability.

5. High contrast ratio. Adopting black lamps can improve the contrast ratio by 50%.

6. High refresh rate, high gray scale, ghost-canceling, low power consumption, low EMI, anti-creeping, multi-route redundancy backup-supporting, and dot-by-dot-calibration.

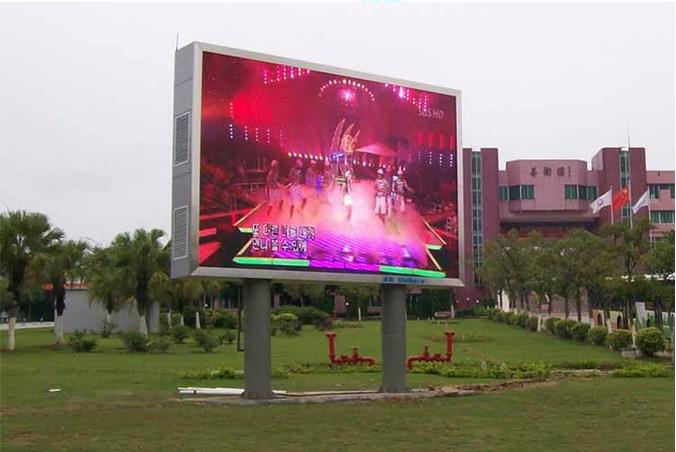

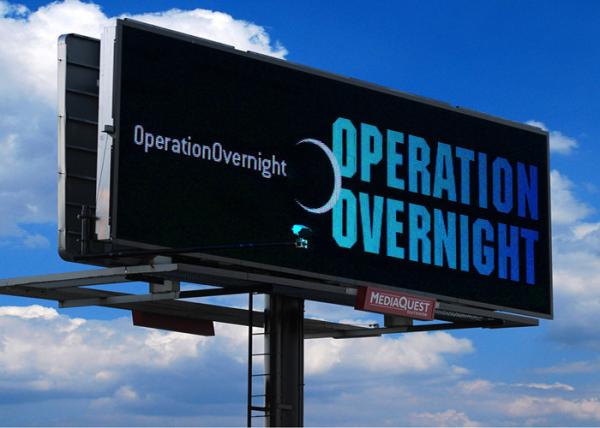

Application scopes of p6 outdoor full color led screen display for advertising led video wall: Widely applied to traffic information distribution of station, quay and qirport, conference, shoppingmall, brand presentation, TVstation, stage show, concert and so on.

What are the considering factors of the Outdoor LED display screen?

Main questions of outdoor led display as below:

(1) display installed in the outdoor, solarization and drench, blow and dust, bad working environment, electrical equipment being wringing and damp will cause short circuit, even fire, cause conk out, even fire, result in loss.

(2) the display may be attacked by the strong electromagnetism made by the thunder and lighting.

(3) The big change of the environment temperatures. The Operating LED display will emit a lot of heating, if the environment temperature is too high, the molectron of the LED screen maybe operating un-normally to damage for its bad giving heating out, finally the LED display system will not operate normally as usual.

(4) The display has a wide range of angle, long viewing distance, big change of the environment light, especially the direct to the sunshine.

With these special requirements, the outdoor LED displays needed:

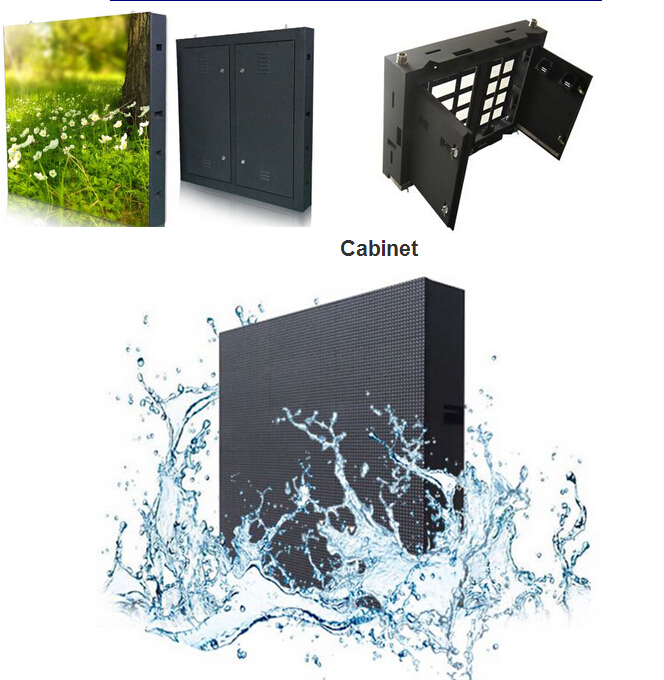

(1) The parts connecting the body of the LED display with the building must be waterproof and anti-leaking strictly as the display. The display must have the measurements for water giving out. Once leaked, it will be given out smoothly.

(2) The lightning rod should be installed on the LED display or the building. The body and the frame of the display must to keep connecting with the earth, the resistor of the earth wire should under 3 Q , so as to the heavy current from lightning can be discharged in time.

(3) Install the ventilator equipment to lower the temperature, keep the inner cabinet temperature in the range of -10 ~ 40 centigrade degree. The back top of the display must install the rolling electronic fans to give the heating out.

(4) Choose the industrial using IC with the working temperature range of -10 ~ 40 centigrade degree for fear the LED display can not start in the low temperature of the winter.

(5) To be seen form a long distance in the high brightness environment, it must be using the extra high brightness LED lamps.

(6) Choosing the new large angle LED lamps as medium, the LED display will have a larger angle, vivid colors, consistent operation and a long life of more than 100 thousand hours. The medium has a popular package with the hat-edge and square shape in cylinder, sealed by Silicon glue, assembly without metal. Also the display has an unique exterior outface, solid and durable, has the characteristics of anti-dazzle, waterproof, impurity proof, protection from high temperature and short circuit.
