    SMD3535 P10 Outdoor Full Color LED Display Stage Background Screen Anti UV

    Ask Lasest Price
    Brand Name : HJY
    Model Number : P10
    Certification : CE FCC
    Price : negotoable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000sqm/month
    Delivery Time : 15-20 days after receiving deposit
    • Product Details
    • Company Profile

    SMD3535 P10 Outdoor Full Color LED Display Stage Background Screen Anti UV

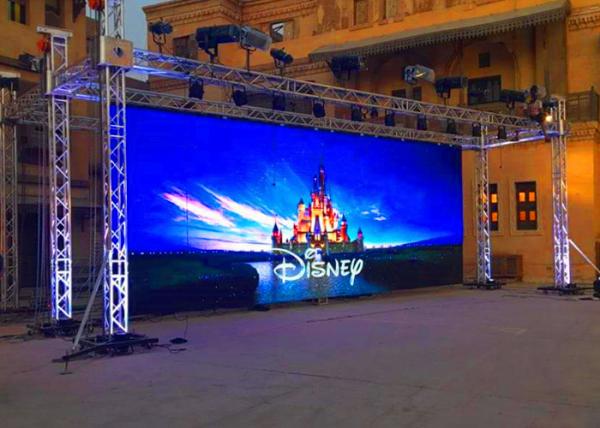

    P10 outdoor rental led display,stage background led digital display screen


    Our P10 outdoor rental led display,stage background led digital display screen advantages:


    1. Classic module design, superior product performance, stability.

    2. Uniform color, high contrast, beautiful natural picture.

    3. New perspective optimization design, covering the mainstream audience.

    4. Anti UV, anti deformation module suite to protect the screen body deformation.

    5. Patent design with unique color mask processing, showing the industry leading ultra high contrast.

    6. Multiple waterproof casing design, single box full inspection factory, the protection level IP65 mature signal transmission architecture, equipped with the upgraded version of power management technology, the use of more secure and reliable.

    7. Patent design with unique color mask processing, showing the industry leading ultra high contrast.

    8. Ultra low temperature free fan design, low temperature rise, small attenuation, long service life.


    configureSpecificationParameter
    PixelDot Pitch10mm
    Pixel Configure1R1G1B
    Pixel/SQM10000Pixel/m²
    LED LampLED TYPESMD3535
    Led BrandKinglight or Nationstar
    Wavelength & BrightnessRed:620-622.5nm;>900mcdGreen:520-522.5nm;>1800mcd Blue:465-467.5nm;>300mcd
    ModuleModule Resolution32Pixel * 16Pixel
    Drive ModeConstant Current Drive
    Scanning Method1/4Scanning
    Module Dimension160mm(Width)x160mm(Height)
    Drive ICMBI5024(Or other Similar IC)
    LED & Drive CompositionLight-Drive Separation
    Refresh Rate>2400HZ
    CabinetCabinet Thickness100mm
    Cabinet ConstructionNormal Standard Cabinet
    Cabinet AssemblyConnecting Sheet
    Cabinet Color(Front/Back)Anodized Blue
    Aviation Plugwp20
    Maintenance ModeBack Maintenance
    Cabinet MaterialAluminium DIE CASTING CABINET
    Cabinet Dimension640X640X80mm
    Power SupplyChina Power Supply
    LED ScreenViewing AngleHorizontal : 110±10°Vertical: 60±10°
    Brightness>7500cd/m²
    Best Viewing Distance10~300m
    LED Life100,000Hours
    Maximum Power750w/m²
    Average Power300w/m²
    Input Voltage220V±10% Or 110V±10%
    Operation EnvironmentTemperature: —20°C~60°C; Humidity: 10%~95%
    Protection GradeIP 65
    LED Screen Weight30kg/m2
