    DIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110V

    Ask Lasest Price
    Brand Name : HJY
    Model Number : P10 DIP
    Certification : FCC
    Price : 530-600 us doller
    Payment Terms : T/T
    Supply Ability : 1000
    Delivery Time : 15 work day
    • Product Details
    • Company Profile

    DIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110V

    P10 outdoor dip

    1. Paremeter

    DescriptionTechnical parameter
    Unit moduleModule size160*160mm 320*160mm
    Pixel pitch10mm
    Pixel density10000dots/m2
    Pixel configuration1R1G1B
    Led specification346
    Pixel resolutionW:16dots*H:16dots W:32dots*H:16dots
    CabinetDimension960mm*960mm*150mm
    Quantities of module36pcs
    Power supply4pcs
    Thermal dischargeFan*2pcs
    Total weight45kg
    Best viewing angle10-300m
    TemperatureStorage: -35°C~+85°C
    Working: -35°C~+85°C
    Thickness15cm can adjustable
    Remarks: cabinet size can changed, upon project need.
    PowerWorking voltageAC220V/110V±10%
    Average power consumption600W
    Max. Power consumption≤1000W/sqm
    Current≤20mA(single LED)
    Control systemCPUPentium4 or above
    Operating systemWIN98/2000/NT/XP
    Control methodSynchronization
    Main technical parameterDriving device1/4 scanning
    Drive typeConstant Current driver IC
    Refresh frequency≥400Hz
    Grey scale/colors256 levels of each color(R/G/B)/16.7M color
    Brightness of white balanceMore than 7000cd/sqm
    Brightness adjustment256 levels of each color(R/G/B)by software
    Operating ambient humidity10%--95%
    Video signalPAL/NTSC
    Control systemDVI display card+full color controller card
    MTBF≥10,000hours
    Life span≥100,000hours
    FlatnessTolerance of interpixel ≤0.3mm
    Tolerance of modules clearance≤0.6mm
    Power switchAutomatic switch
    Display mode1024*768
    Communication distance

    Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.

    Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM

    SoftwareLED media player

    2. Module picture



    3. Enclosure picture

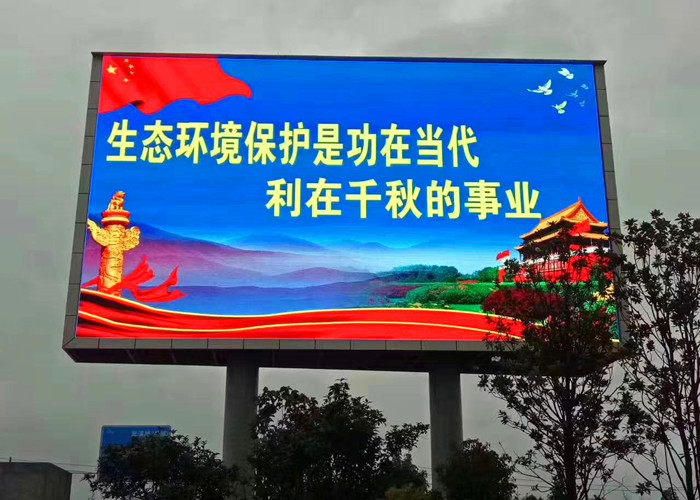

    4. Screen picture

    DIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110VDIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110V


    5. Factory will figure

    6. Contact us

    Shenzhen hao jingyuan photoelectric co.,LTD

    WhatsAPP: 0086 19928766899

    Contact person : Mr Mark

    Address: 2F,4th Building,Fu hong Industrial Area,Fengtang Road,Fuyong Town,Baoan District,Shenzhen China

    Web site: www.hjyled.com
