    SMD2525 Outdoor Led Display Panels 1/8 Scan 40000 Density IP65 Waterproof 1R1G1B

    Ask Lasest Price
    Brand Name : HJY
    Model Number : P5
    Certification : CE FCC
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000square meters per month
    Delivery Time : 15-20 work days
    • Product Details
    • Company Profile

    SMD2525 Outdoor Led Display Panels 1/8 Scan 40000 Density IP65 Waterproof 1R1G1B

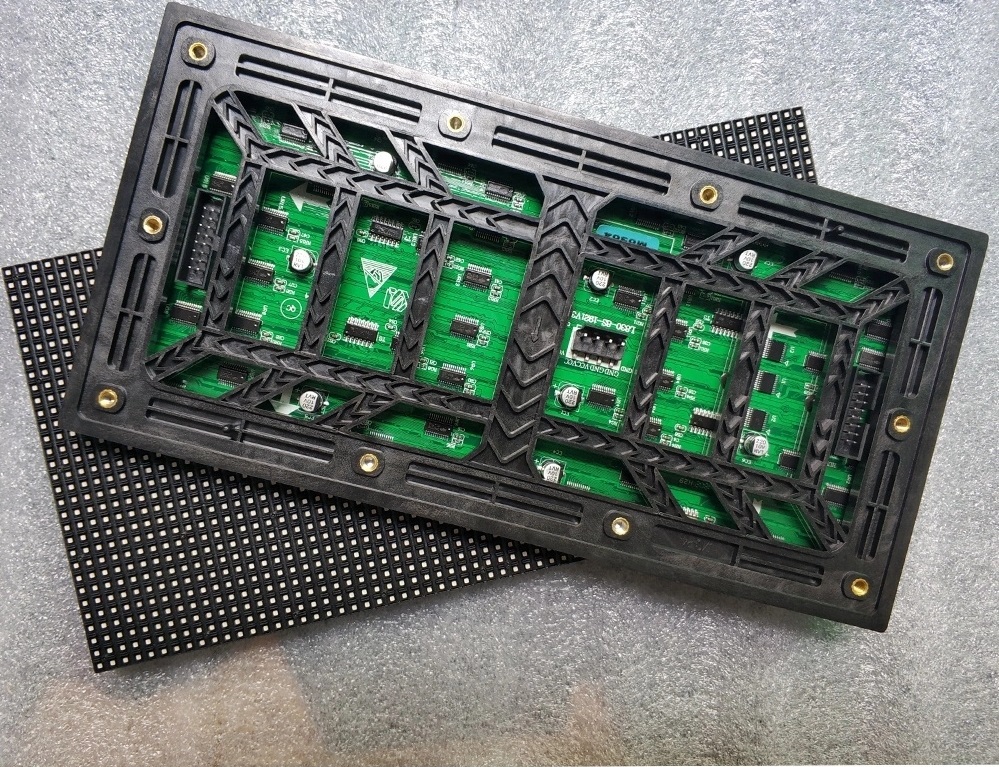

    SMD2525 1/8 scan 40000 density outdoor fixed p5 led screen


    TypeSMD2525
    Lamp BrandEpistar
    Arrangement1R1G1B
    Pixel Pitch5mm
    Module Size160×160mm
    Module Resolution32×32dots
    Pixel Density40000 Dots/sqm
    Input VoltageAC110-220V±10%, 50/60Hz
    Color Grayscale16bit
    Gray Scale per Color65536 level
    Cabinet Weight45kg
    Brightness>6800cd/sqm
    Viewing Angle120(H), 120(V)
    Life-span100, 000 hours
    Refresh Rate>1000Hz
    CertificateCE, FCC
    Driving method1/8 scan
    Cabinet size960mm*960mm
    Cabinet resolution192*192dots
    Module quality18pcs
    MaterialIron material
    MAX.Consumption1200W/m²
    AVE.consumption400-500W/m²
    Optimal viewing distance≥5m
    Fresh frequency≥1920Hz
    Frame frequency≥60Hz
    Waterproof gradeIP65

    product description


    1)Good heat emission, water proof and stable performance


    2)Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal


    3) High resolution and definition of screen image, clear and non-flash screen image


    4)Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive


    5)Low consumption, stable performance, highly durable


    6) High brightness & broad viewing angle, brightness can be adjusted automatically or manually


    7) 2 years warranty, easy to install & maintenance


    8) CE, FCC.video and radio frequency input, special structure can be freely assembled
