    Customized Full Color Led Panel , Outdoor Led Panel P8 High Brightness Nationstar Chip

    Ask Lasest Price
    Brand Name : HJY
    Model Number : P8 front service led module
    Certification : CE FCC
    Price : negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000sqm/month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Customized Full Color Led Panel , Outdoor Led Panel P8 High Brightness Nationstar Chip

    led display board for advertising P8 outdoor front service led module display


    Module Parameter:

    Pixel pitch8mm
    Pixel configuration1R1G1B
    LED type3-in-1 SMD 3535
    Module size320*320mm
    Module weight2kg
    Module resolution40*40 dots

    Cabinet Parameter:

    Cabinet size1280*1280*200mm
    Cabinet materialiron cabinet
    Cabinet weight50kgs
    Ingress protectionIP65


    Whole Screen Parameter

    Pixel density

    15625dots/

    Brightness

    ≥6500 cd/

    Viewing angle

    H≥160° V≥160°

    Min.viewing distance

    8m

    Max.power consumption

    1200W/

    Avg.power consumption

    600 W/

    Working voltage

    110~220VAC±15%

    Interface

    HUB75

    Colors

    16.7millon colors

    Gray level

    14-16bits

    Frame frequency

    ≥60frames/s

    Refresh rate

    ≥300Hz

    MTBF

    ≥100000 hours

    Lifespan

    ≥75000 hours

    Protective function

    Over-heat/Over-load /Power-down /Power-leakage

    /Lightning-protection etc.

    Operating temperature

    -10℃ ~ +40℃

    Operating humidity

    10-80% no condensation

    Storage temperature

    -20℃ ~ +60℃

    Storage humidity

    10-85% no condensation

    Video signal (with video processor)

    AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP

    Color temperature

    Adjustable by software

    Brightness level

    256 levels, automatic adjustment by software

    Control way

    Computer, video-synchronous, real-time, off-line, wireless, internet etc.

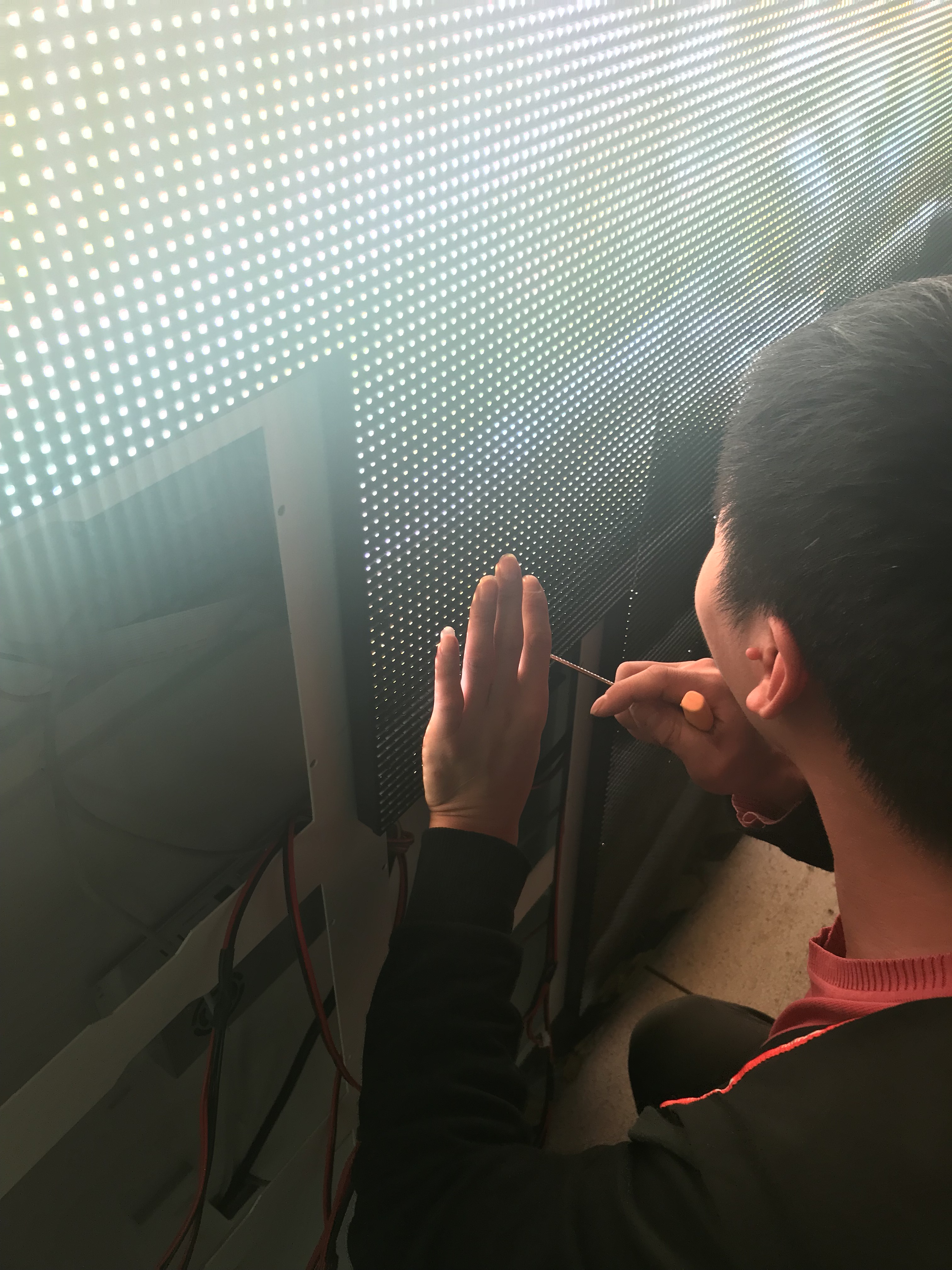

    Installation and test:
